TSR-2

Automatic slitter rewinder with central drum and axial drive for cutting and rewinding narrow strips

500 m/min

Maximum working speed

600 a 1200 mm

Maximum web widths

600 mm

Maximum rewind diameter
600 a 1200 mm

Maximum web widths

300 m/min

Maximum working speed

600 mm

Maximum rewind diameter

Descarga nuestro catálogo industrial y descubre la gama de maquinaria de converting desarrollada por JUSA para optimizar procesos productivos. Encontrarás soluciones diseñadas para mejorar la eficiencia, automatizar operaciones y adaptarse a las necesidades de diferentes sectores industriales, con tecnología orientada al rendimiento y la productividad.

Download our professional catalog NOW and discover all the technology we can offer you

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Name*
Company*
Consent*
  • Integrated or external shafted or shaftless unwinder.
  • Pneumatic or electrical automatic brake with load cells or dancing roller
  • Axial and radial reel regulation device and optional web guide device
  • Integrated or external shafted or shaftless unwinder.
  • Pneumatic or electrical automatic brake with load cells or dancing roller
  • Axial and radial reel regulation device and optional web guide device
  • Integrated or external shafted or shaftless unwinder.
  • Pneumatic or electrical automatic brake with load cells or dancing roller
  • Axial and radial reel regulation device and optional web guide device
  • Integrated or external shafted or shaftless unwinder.
  • Pneumatic or electrical automatic brake with load cells or dancing roller
  • Axial and radial reel regulation device and optional web guide device
  • Integrated or external shafted or shaftless unwinder.
  • Pneumatic or electrical automatic brake with load cells or dancing roller
  • Axial and radial reel regulation device and optional web guide device
  • Integrated or external shafted or shaftless unwinder.
  • Pneumatic or electrical automatic brake with load cells or dancing roller
  • Axial and radial reel regulation device and optional web guide device

Unwinder

  • Integrated or external shafted or shaftless unwinder.
  • Pneumatic or electrical automatic brake with load cells or dancing roller
  • Axial and radial reel regulation device and optional web guide device

Web path

  • Driven main pull roll with own pressure roller or "S" wrap.
  • Aluminum idler rollers

Slitting

  • Shear cut rotary blades of pneumatic shear cut blade with manual positioning.•
  • Razor blade with optional hole roller to slit plastic foil.
  • Specific web path for Tangent-cut or Wrap-cut
  • Suction trimming device.

Rewinder

  • Chromed o vulcanized rewinding drum.
  • Duplex rewind with centre surface winding system.
  • Pneumatic rewinding shaft
  • Manual paper core possitioning

Control and security

  • PLC for all machine functions and controls
  • Physical or photoelectric barriers to the operator security

Applications

  • Various thickness papers, various thickness plastic foil, non-woven, simples or laminated aluminium foil, etc.

Main Specifications

Technical characteristicsStandardOpcional
Maximum working speed500 m/min( or Custom )
Maximum web widths600 a 1200 mm( or Custom )
Maximum rewind diameter 600 mm( or Custom )
Maximum unwind diameter ( or Custom )
Minimum slittin width10 mm5 mm
Web tension rangeLoad cell( or Custom )
Rewind systemCenter-surface winder
SlittingShear knifeRazor blades, Pneumatic knife holder
Material Various thickness papers, high thickness plastic foil, non-woven, simples or laminated aluminium foil, etc.

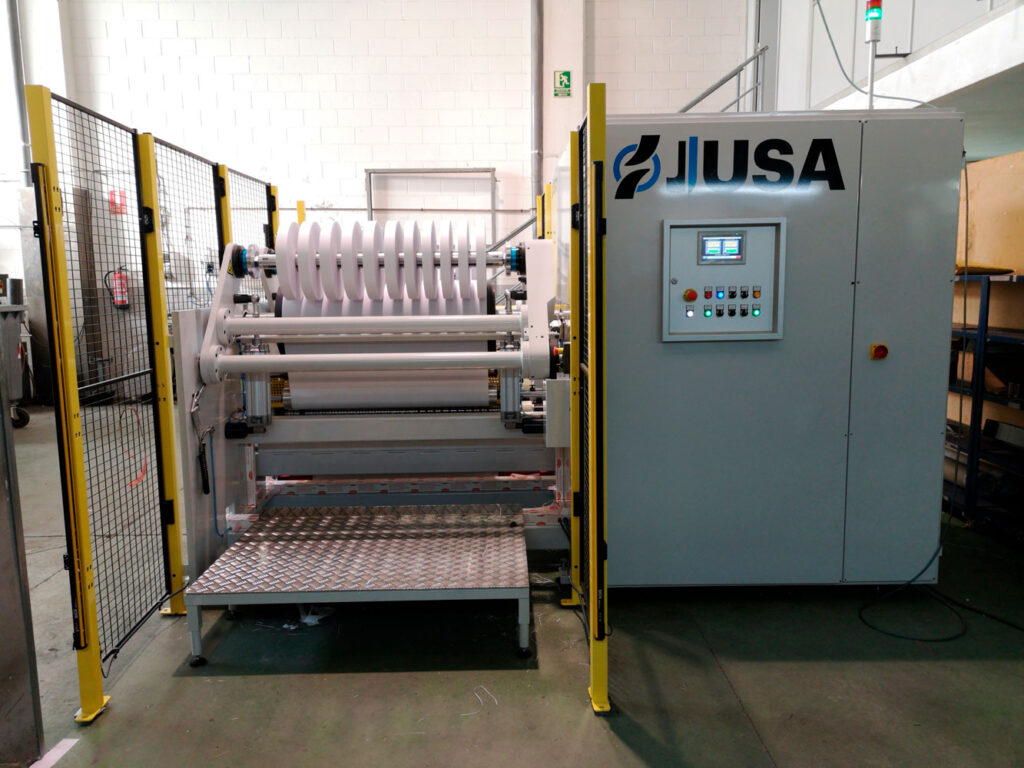

CORTADORA-REBOBINADORA-TSR-2-(1)

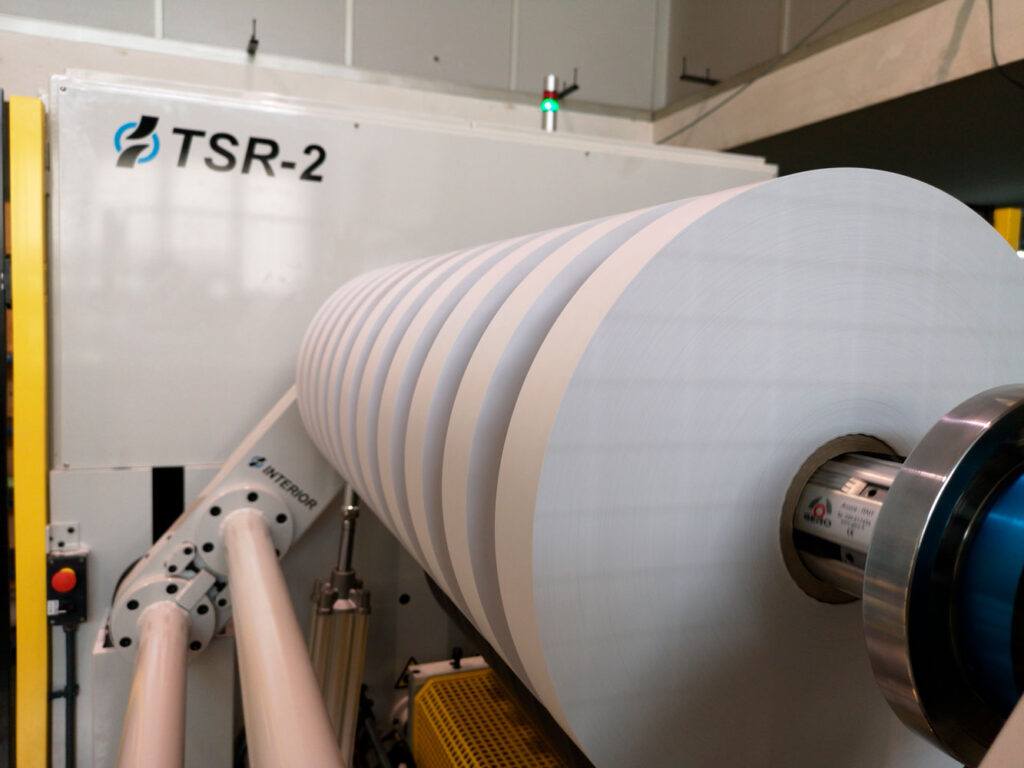

CORTADORA-REBOBINADORA-TSR-2-(2)

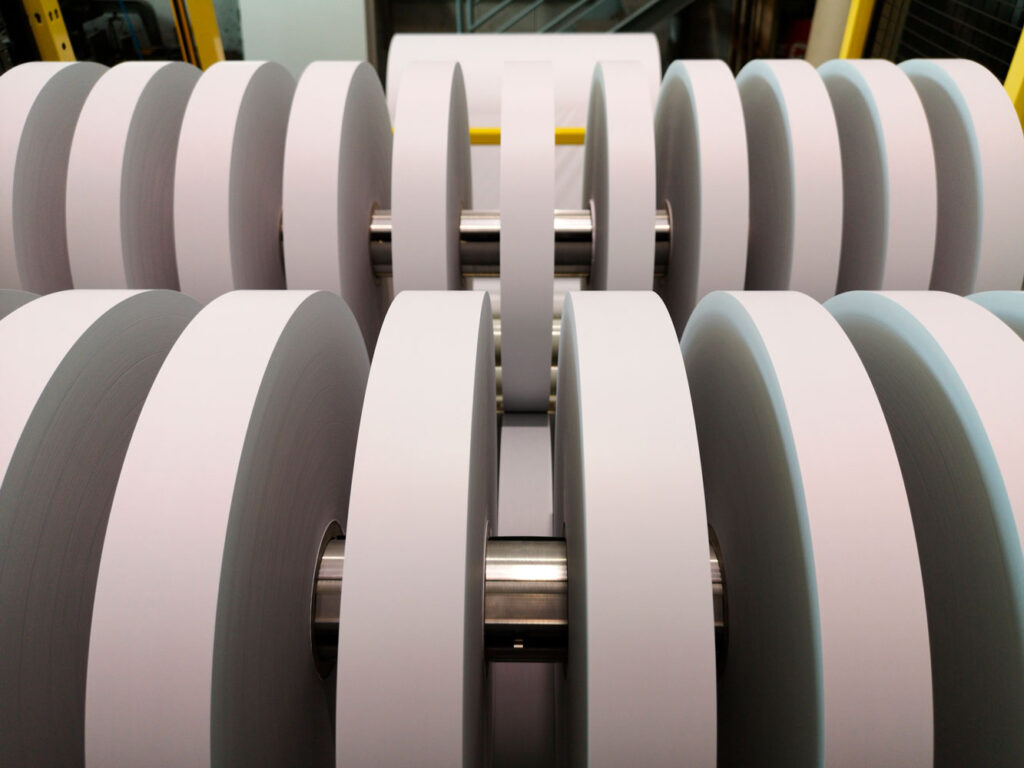

CORTADORA-REBOBINADORA-TSR-2-(3)
maquines_tsr2
