SR-TURRET AST

High efficiency automatic slitter rewinder with automatic turret rewinding system to produce pre-tapered masking paper

250 m/min

Maximum working speed

1.200 mm

Maximum rewing diameter

100 mm

Maximum web widths

250 m/min

Maximum working speed

1.200 mm

Maximum rewind diameter

Download our professional catalog NOW and discover all the technology we can offer you

"*" indicates required fields

Name*

Company*

Email*

Telephone*

Country*

Message

External, shafted unwinder.
Automatic tension control equipped with AC motor and dancing roller
Axial and radial reel regulation device and web guide system in option

External, shafted unwinder.
Automatic tension control equipped with AC motor and dancing roller
Axial and radial reel regulation device and web guide system in option

External, shafted unwinder.
Automatic tension control equipped with AC motor and dancing roller
Axial and radial reel regulation device and web guide system in option

External, shafted unwinder.
Automatic tension control equipped with AC motor and dancing roller
Axial and radial reel regulation device and web guide system in option

External, shafted unwinder.
Automatic tension control equipped with AC motor and dancing roller
Axial and radial reel regulation device and web guide system in option

External, shafted unwinder.
Automatic tension control equipped with AC motor and dancing roller
Axial and radial reel regulation device and web guide system in option

Unwinder

External, shafted unwinder.
Automatic tension control equipped with AC motor and dancing roller
Axial and radial reel regulation device and web guide system in option

Web path

NIP to isolate the tension between unwinding and rewinding
Driven main pull roll with pressure roller, tangent or "S" wrap.
Aluminium idler rollers

Slitting

Shear cut rotary knife of pneumatic knife holder for shear cut
Manual knife positioning
Specific web path for Tangent-cut
Suction trimming device in option.

Rewinder

High production rewinding system with automatic turret rewinder and automatic orthogonal cutting device.
Automatic paper core loading
Automatic labeling
Finished roll unloading system

Control and security

PLC and HMI for all machine functions and controls
Physical or photoelectric barriers to the operator security

Applications

High production rewinding system for pre-tapered masking paper in a lot of formats

Main Specifications

Technical characteristics	Standard	Opcional
Maximum working speed	250 m/min
Maximum rewing diameter	1.200 mm
Maximum web widths	100 mm
Formatos	100mm, 180mm, 150mm, 300mm y 450mm
Longitud de bobina	Progamable, 20metros y 45 metros
Diámetro ejes	25 mm
Control de tensión desbobinado	Automatico
Sistema de rebobinado	Torreta automática
Material	Papeles de varios espesores

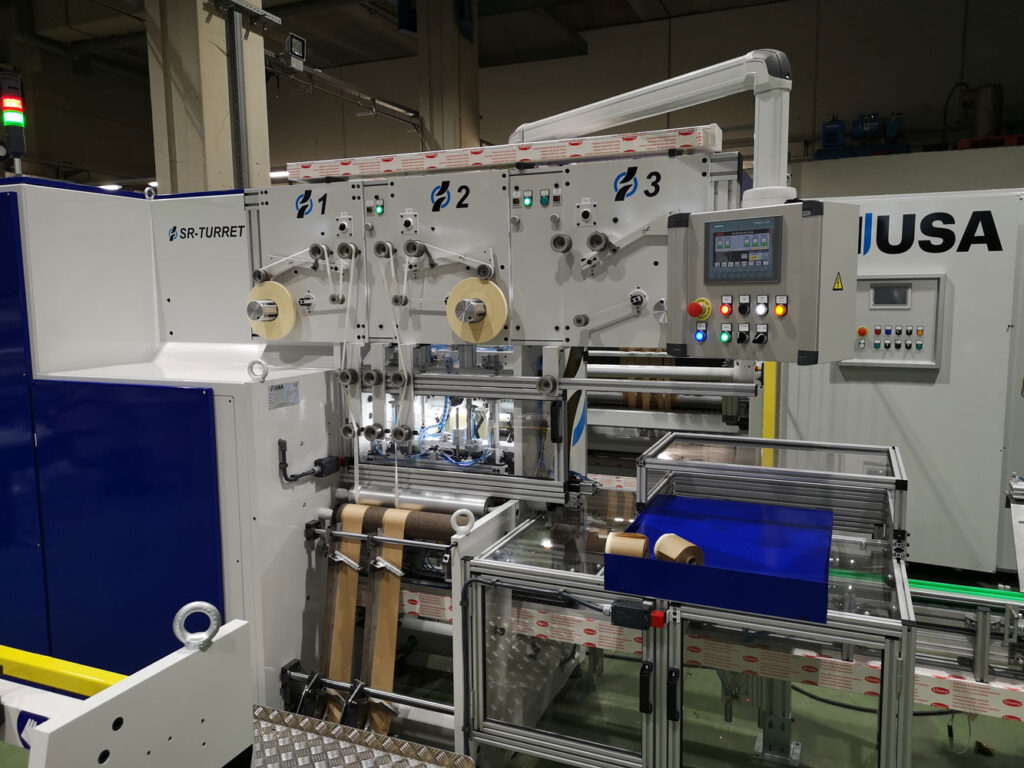

IMG_20210414_081104

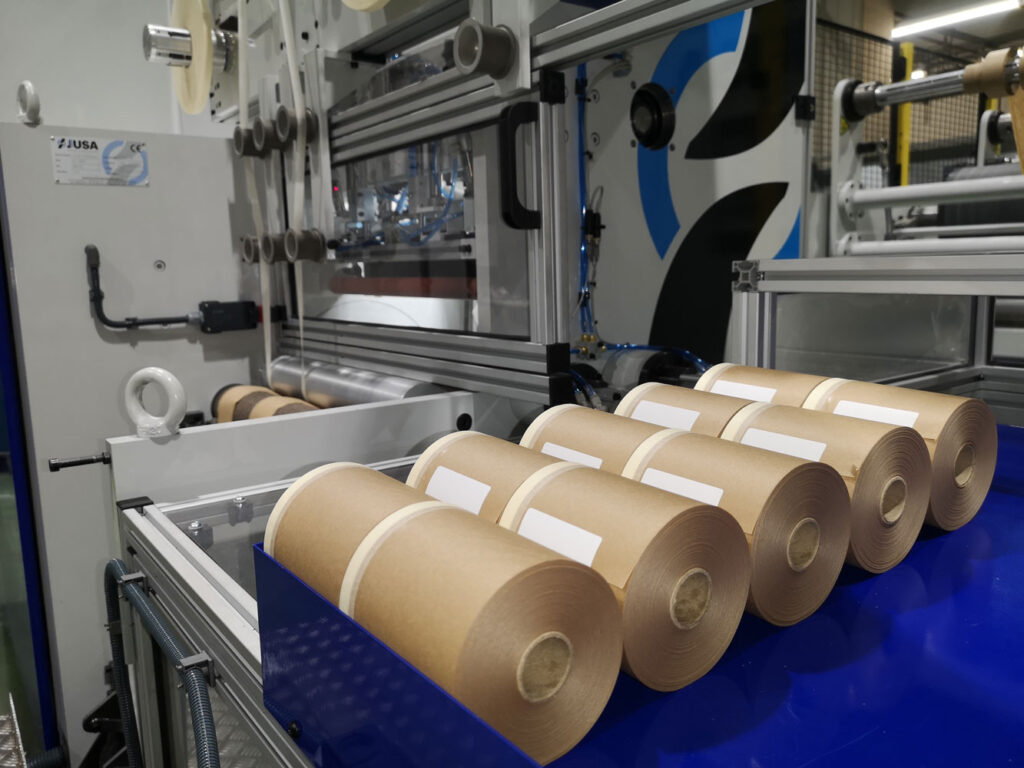

IMG_20210414_081700
