SP-2

Traverse winding system for non-adhesive flexible materials
300 mm

Maximum web widths

200 m/min

Maximum working speed

300 mm

Maximum rewind diameter

Descarga nuestro catálogo industrial y descubre la gama de maquinaria de converting desarrollada por JUSA para optimizar procesos productivos. Encontrarás soluciones diseñadas para mejorar la eficiencia, automatizar operaciones y adaptarse a las necesidades de diferentes sectores industriales, con tecnología orientada al rendimiento y la productividad.

Download our professional catalog NOW and discover all the technology we can offer you

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Name*
Company*
Consent*
  • Integrated or external shafted or shaftless unwinder.
  • Automatic tension control by motor or brake with dancing roller or load cells
  • Axial and radial reel regulation device and optional web guide system
  • Integrated or external shafted or shaftless unwinder.
  • Automatic tension control by motor or brake with dancing roller or load cells
  • Axial and radial reel regulation device and optional web guide system
  • Integrated or external shafted or shaftless unwinder.
  • Automatic tension control by motor or brake with dancing roller or load cells
  • Axial and radial reel regulation device and optional web guide system
  • Integrated or external shafted or shaftless unwinder.
  • Automatic tension control by motor or brake with dancing roller or load cells
  • Axial and radial reel regulation device and optional web guide system
  • Integrated or external shafted or shaftless unwinder.
  • Automatic tension control by motor or brake with dancing roller or load cells
  • Axial and radial reel regulation device and optional web guide system
  • Integrated or external shafted or shaftless unwinder.
  • Automatic tension control by motor or brake with dancing roller or load cells
  • Axial and radial reel regulation device and optional web guide system

Unwinder

  • Integrated or external shafted or shaftless unwinder.
  • Automatic tension control by motor or brake with dancing roller or load cells
  • Axial and radial reel regulation device and optional web guide system

Web path

  • Driven main pull roll with own pressure roller or "S" wrap.
  • Aluminum idler rollers

Slitting

  • Slitting system for paper and plastic films.
  • Specific web path for Tangent-cut or Wrap-cut
  • Edge trim removal device in option.

Rewinder

  • Pneumatic rewinding shaft
  • Servo-driven material web guiding system

Control and security

  • Control of machine functions via touch screen on the rewinder
  • Physical or photoelectric barriers to the operator security

Applications

  • Non-adhesive materials like papers, films, non-woven, laminated aluminium foil, etc.

Main Specifications

Technical characteristicsStandardOpcional
Maximum material width300 mm( or Custom )
Maximum unwind diameter 600 mm( or Custom )
Spool maximum width300 mm( or Custom )
Spool maximum diameter300 mm( or Custom )
Rewinding shafts76, 152 mm( or Custom )
Maximum speed200 m/min( or Custom )
Web guidding system± 50 mm( or Custom )
Slitting systemShear bladesPneumatic knife holder, Razor balde, others
Material Various thickness papers, high thickness plastic foil, non-woven, simples or laminated aluminium foil, etc.

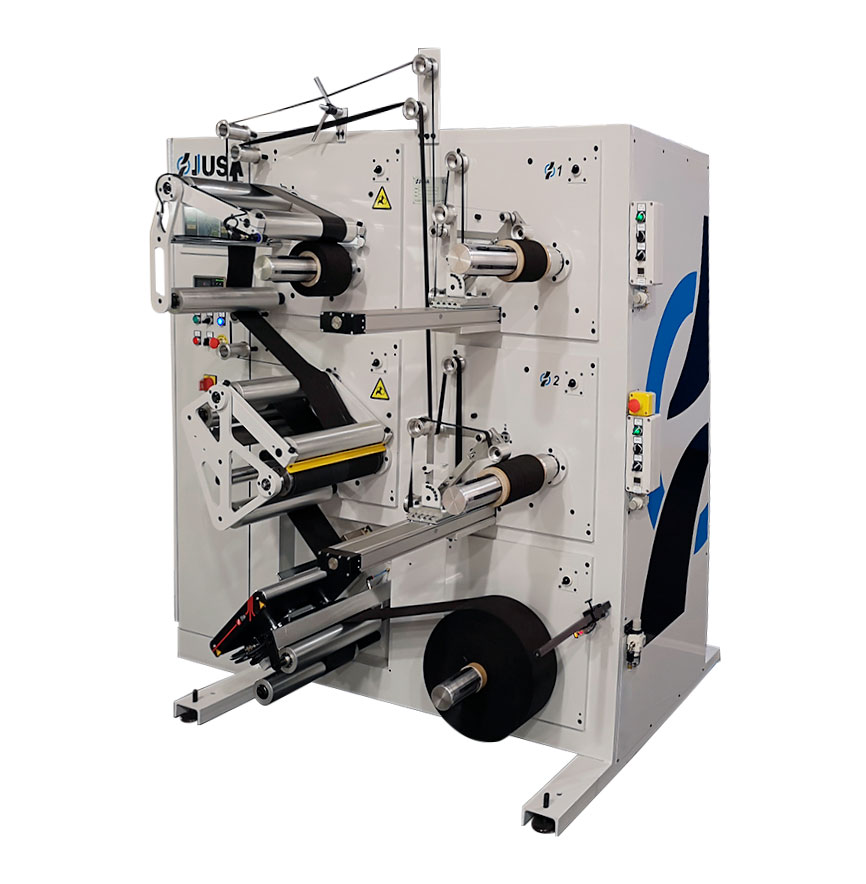

Línea de encarretadoras SP-2 MICROSILIT de Jusa, diseñada para el bobinado transversal de materiales flexibles con múltiples estaciones y alta productividad.
Detalle de la línea SP-2 MICROSILIT con sistema de corte longitudinal, donde el material flexible se divide en tiras para su posterior bobinado.
Detalle de la línea SP-2 MICROSILIT con sistema de bobinado transversal, donde las tiras de material se enrollan en múltiples ejes con control de tensión.
