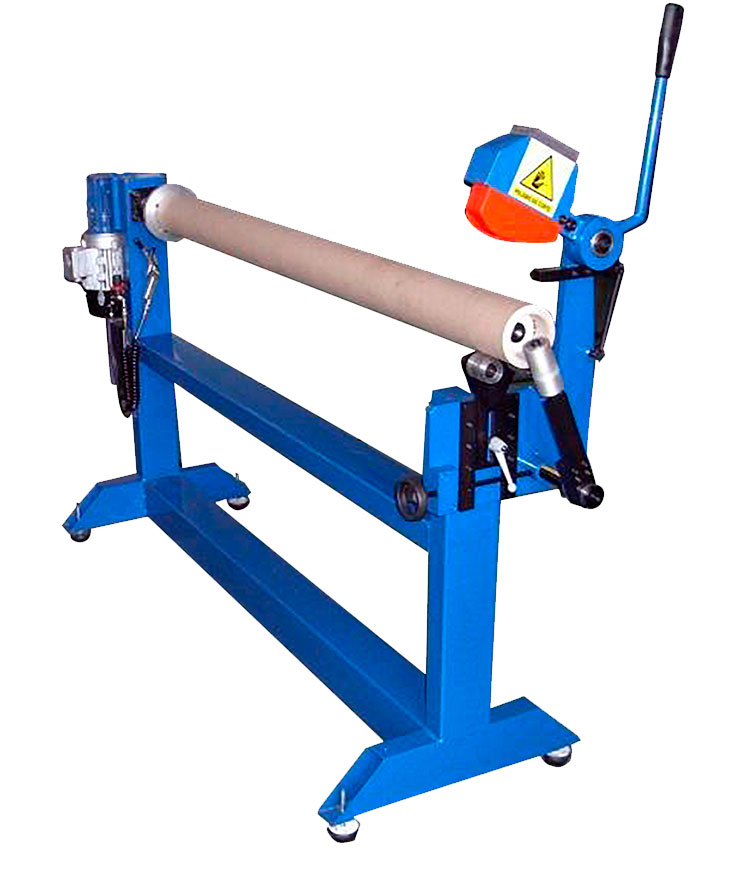

CTM-1600

Manual core cutter for small series

Download our professional catalog NOW and discover all the technology we can offer you

"*" indicates required fields

Name*
Company*

Advance

  • Manual cutting length adjustment.
  • Manual core movement
  • Pneumatic or mechanic chuck

Slitting

  • Manual cutting device
  • Non-motorized blade cutting system.

Control and security

  • Chuck adjustable speed.
  • Physical or photoelectric barriers to the operator security

Applications

  • Cut core with small thickness and small glue content.
  • Cut core in small series and productions.

Main Specifications

Technical characteristicsStandardOpcional
Paper core length1600 mm( or Custom )
Paper core inner diameter76, 152 mm( or Custom )
Cutting systemManual
Minimum cutting length5 mm.( or Custom )
Cutting length deviation± 0.5 mm( or Custom )
Maximum paper core thickness12 mm( or Custom )
Advance systemManual
Material Paper
